◆好產品特質 Product features
此機型為兩用型模具及滾筒噴砂機,產品類小工件產品可以批量生產用滾筒來生產提高了生產產量,重型工件可以使用轉臺降低工人的勞動強度,大大的滿足了客戶的需求。
The machine is available mould and roller sandblasting machine, Class products can batch production small workpiece with roller to improve manufacturing output, Heavy workpiece can use turntable to reduce the labor intensity, Fully meet the customer's requirements.
◆具體技術水平技術指標 Main technical parameters
設備型號 Model |

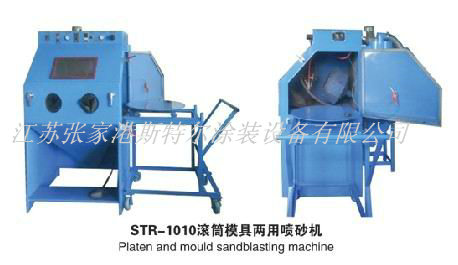

STR-1010滾筒模具兩用噴砂機 |
本職工作艙尺寸大小 Internal size(mm) |
1000×1000×790 |
整個機器尺寸圖 Complete machine size(mm) |
1000×1540×1830 |
主機電源 Power |
220V 50Hz |
廣州POS機燈飾照航燈 Machine floodlight |
220V 13W環保燈 |
剝離 器直流無刷電機 Separator motor |
220V 50Hz 550W |
分離出來器功率 Separator air volume |
8.5m3/min |
壓縮的環境源 Compressed air source |
2-8bar(kg/cm2) |
轉臺直徑約 Turntable diameter(mm) |
500 |
轉臺承受力 Turntable bearing |
150kg |
滾筒式承受 Roller bearing |
10-30Kg |
產品毛重 Machine net weight |
380 kg |
