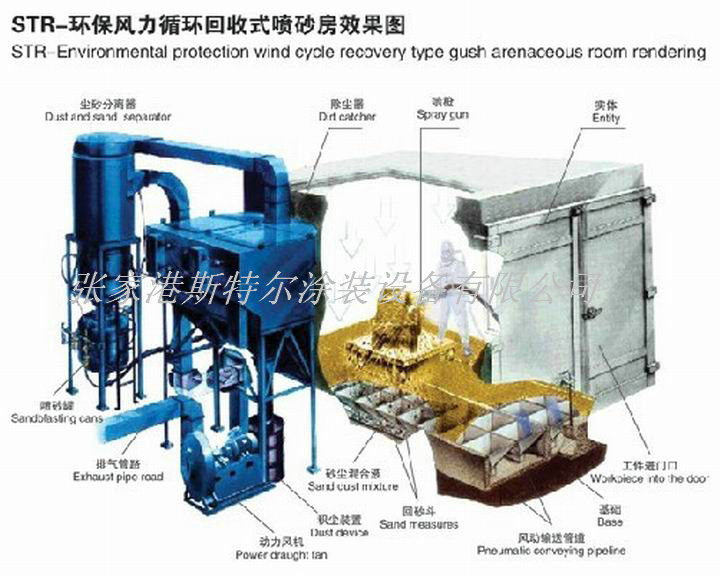

STR-環保風力循環回收式噴砂房效果圖

STR-Environmental protection wind cycle recovery sandblast room designsketch

◆噴砂（丸）房的分解成軟件系統

Composition of the sandblasting (shot) room system

1、工作中室  Studio

2、噴砂系統性  Sandblasting  system

3、耐磨材料收回程序  Abrasive recycle system

4、抑塵整體  Dust removal system

5、軸類輸送機系統的  Workpiece conveying system

6、管控體統  Control system

7、燈具照明裝置  Lighting system

 ◆用于規模 Applicable scope

魔幻鑄件鍛件、對焊鋼成分、干式變壓器油箱開關、建設工程設備、摩托小車、燃氣鍋爐研制、醫藥化工設備、國際船舶修造等噴砂噴砂除銹。

Large castings and forgings welding steel structure, transformer oil tank, engineering machinery, locomotives, boiler manufacturing, chemical machinery, ship building blast cleaned, etc.

 ◆食品特別 Product features

噴砂房是我公司在蜂窩地板技術的基礎上，自行開發、設計的環保型蜂窩式噴砂（丸）房，可按客戶的產品特性、噴砂要求等設計制作。蜂窩地板噴砂房是利用風機的風力為動力，將磨料通過回料管道吸送到旋風分離器中進行分離，最后進入噴砂系統循環利用。

Sandblasting room  is our company in introducing foreign advanced cell technology based on the floor, , the development, the design of the environmental protection cellular gush arenaceous (shot) room by ourselves, according to customers' product characteristics, sandblasting design requirements, etc. Cellular floor gush arenaceous room is the wind power by fan for abrasive materials, will back through the pipe to cyclone separator suction of separation and finally into gush arenaceous system recycling.

兼具一些缺點有哪些：

1、省去了常規噴砂房砂料輸送煤循環系統的螺旋輸送機，斗式提升機以及地下工程，不需建造地坑，節約了地基施工費用，大大節約了工程成本；

2、耐磨材料回收并率高，有利清換耐磨材料；

3、包括電器設備組件均所采用進口量新產品，有著性能指標平穩，健康安全正規，的使用平均使用期長，定期檢查簡單化；

4、噴砂房室體內有高清晰的能見度，室體自然補風，節約能源消耗；

5、濾油機主要包括冷凝機組安裝凈化設備，第1級主要包括風暴拆分器，2.級用凈水器濾芯式安裝凈化設備裝置，其總安裝凈化設備熱效率能達99.99%這；

6、在噴砂房正面房頂上部，配有“聲光報警系統”，在噴砂房內，配有急停呼叫按鈕；

7、各模式化自動操作選取互鎖操作，當在這其中一模式化出現了電腦故障時，關聯模式化均為止本職工作本職工作，噴槍為止本職工作引射；

8、房體分為房子設汁設汁，外貌簡單明了、顏值、國家標準，減噪效用好，且配置高效。

Advantages

1. Omitted conventional Sandblasting room sand conveying coal circulation system, screw conveyor a pattern lift machine and underground project, no need to build the pit and save foundation pit construction cost, greatly reduce the project cost;

2. high  abrasive recycle efficiency, easy to change abrasive;

3. The main electrical components are imported products, have the stable performance, safety and reliability, long life, easy maintenance;

4. Sandblasting room inside has high-resolution visibility, Chambers fill the wind, save energy natural consumption;

5. This machine use double levels of dust removing, the first level is the cyclone separator, the second type is filter dust removal system. Its total removal efficiency may reach above 99.99%;

6. In sandblasting room roof, equipped with a "positive upper sound-light alarm system", in the room, sandblasting with abrupt stop call button;

7. The electric control system uses interlock control, while one system malfunction, related system are to stop working, stop spraying gun;

8. Building decoration design room body appearance, simple , beautiful, standard, good noise reduction result  and convenient installation.
