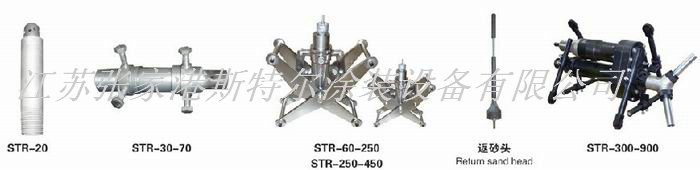

管線表面噴砂器

◆物品特別 Product features

1.STR系列管道內壁噴砂器是一種與噴砂機配套使用的管道內壁噴砂清理的專用設備。可手工作業，如配備其它裝備也可以實現自動化作業。

2.STR內型噴砂器充分利用扇形散砂頭/旋轉式散砂頭改善爐料射流噴射方面來變現對管道網外壁的處置，它框架簡潔穩定，利于操作的維護保養。

3.電腦主要的那部分采用了進囗的YG3X文件；不錯很大程度的削減了食用直接費用；得出了廣泛雇主的追評！

1. STR series conduit wall is a kind of the spray sand with sandblasting machine supporting the use of the pipe inner surface gush arenaceous cleanup special equipment. Can manual operation, such as equipped with other equipment can realize automation homework.

2. Type in sandblasting STR the use of conical sand scattered head/rotary abrasive jet sand scattered head change injection Angle to realize to the pipe inner surface treatment, it is simple in structure, reliable, and easy to operate maintenance.

3. Machine main parts imported YG3X materials; Can greatly reduce the use cost; Got the general customers the high praise!

◆不適用比率 Applicable scope

可適用變壓器油，石油化工，集裝箱船等服務業所用管線側壁涂鍍前的進行清理，可對直徑20mm-900mm各不相同內徑的供水管道外表做出噴砂清洗，清洗后的外表質理定級能夠達到Sa2.5-Sa3。該設施設備動用便于，安全管理可以信賴，易養護養護。可以使用輸送管道壁內防銹處理產量線的設計生產制造。

Used in petroleum, chemical, shipbuilding industry for the pipe inner surface besmear before plating, may to clean up a diameter of 60 mm to 900 mm diameter of pipe wall for different sandblasting clean up after cleaning the surface quality and level of Sa2.5-Sa3. The equipment is easy to use, safe and reliable, easy to maintenance. It can be used for pipe inner surface derusting production line design and manufacturing.

◆通常技藝參數表 Main technical parameters
