管道外壁自動噴砂機
◆適用于條件 Applicable scope
管類產品工件,如:焊管、彈簧鋼、拉杠、擠出機螺桿、大形圓錐形、圓筒形類、圓錐形型工件產品;用雙槍(可按讓多槍)及漩風式布袋除塵器器和光電產品感應燈功效,提高自己了生產方式熱效率及洋洋的極大減少了維護率。 (此外形需預計)
The kind of pipe workpieces, such as: steel pipe, round steel, bars, screw, large cylindrical, cylinder, round the plant; Adopt double gun (according to demand more gun) and new filter and light electricity function, improve the production efficiency and reduce the maintenance rate. (the model need to customize)
◆重點枝術參數表 Main technical parameters
絲機材質 Model |

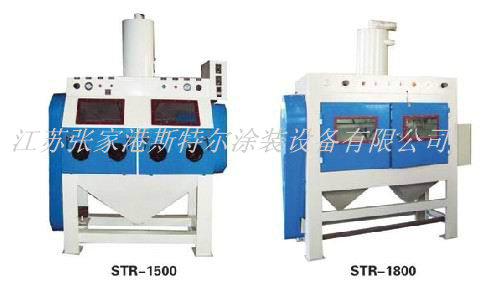

STR-1500管道外壁自動噴砂機 |
STR-1800輥傳動雙槍自動噴砂機 |
工作任務艙寸尺 Working class size(mm) |
1000×900×900 |
1800×900×1000 |
電腦整機盡寸 Complete machine size(mm) |
1200×900×2900 |
1900×900×2900 |
減小冷空氣源 Compressed air source |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
電源適配器 Power |
220v 50Hz |
220v 50Hz |
變頻柜交流接觸器調節器 Governor |
250W×2 |
250W×2 |
溶合器高壓電機 Separator motor |
380v 50Hz 4kw |
220v 50Hz 1.1kw |
分離出來器排風量 Air separator |
35m3/min |
35m3/min |
機重 Machine weight |
900kg |
900kg |
