無塵自動循環回收噴砂機系列

◆食品性能 Product features（請來訪問有很大量的例子張片供學習）

環保型循環回收式噴砂機它集噴砂、回收、循環、分離、除塵于一體，無污染及砂料四處飛揚現象，是新一代的環保型噴砂設備。是我公司為繁重的噴砂工作設計生產的多用途、大工作半徑、高效率的新型環保噴砂設備。根椐負壓產生裝置不同，分為電動和全氣動兩大種機型。該設備采用壓縮空氣做動力，將磨料高速噴射到工件表面，經過磨料沖擊把工件表面銹污除去，使表面達到一定的清潔度和粗糙度，再通過真空泵（或多級真空發生器）產生的負壓，回收砂料和粉塵，并通過設備的砂塵分離系統將完整的磨料分離繼續循環使用，粉塵與銹污進入集塵桶。在手把開關控制下，設備的噴砂、回砂、砂塵分離、砂料循環、粉塵過濾等所有動作自行完成，工作環境干凈無污染，作業現場達到“GB103328-10333-89”生產車間的空氣灰塵健康標準。砂料、灰塵定時收廢、轉移、循環法食用，辦公現象純潔無灰塵影響。專用設備綠色環保制作，大大的優化了農民工的勞動就業的強度和數學作業環保配備有噴吹閥平衡裝置，可重新移除濾蕊靜電。內置式分水油煙凈化器器。可對減小氣展開二級水油剝離。重新送料，將吸砂頭復制砂料中，啟動的高壓氣泵軟件系統將重新送料。PLC可java開發掌握（配置），料位報警聲音作用(配搭)。安裝有調壓旋轉開關、噴吹閥快捷。安穩的氣控裝制與耐磨材料閥。本職工作的半徑20-70米，外觀外理層級達Sa2.5-3級。配制安全的防水的電開關電源線墻壁電插座電開關電源電插座，有利運作。配制掌握電開關電源線中國航空墻壁電插座電開關電源電插座有利運作。差異化的形象的除塵掌握面板價格與自動抑制箱。服務器維護與檢修保養十分有利。車式膽機機箱構造，遮陽除塵，中國移動有利。膽機機箱門框利用便宜門瑣快速連接，折卸有利。手電開關掌握（自動抑制DC24V）。一機三用，具備休館式、工業化吸砂器、環境型3種儀器的功能性。噴砂設備主機用到異常有效控制二次回路，的工作有壓力在0.2Kpa-0.8Kpa規模內內隨意設定，可符合有所不同工件表面的噴砂工藝技術標準。選用規模內：除銹防銹、除表面油漆、對接焊縫處理（也包括冷庫保溫隔熱板的表層裝飾管管道焊接下列不屬于周遍的去黑、去焊渣進行外理）去毛刺發生、飛邊、氧化物皮、冷庫保溫隔熱板的表層裝飾管，鋁門窗外層的清雅型亞光進行外理（耐污性好些、可蓋住割破）、去水泥混凝土土、石雕外層污圬等進行外理。

Features: Environmental protection cycle recovery type sandblasting machine sets of sandblasting, recycling, circulation, separation, dust removal in a body, no pollution and sand material flying around phenomenon, is a new generation of environmental protection sandblasting equipment. The machine is our company for heavy gush arenaceous job design of multi-purpose, the great work radius, high efficiency of the new environmental protection sandblasting equipment. Root tree produced negative pressure, divided into different device and electric pneumatic two types of all. The equipment adopts compressed air do motive force, abrasive high-speed spray into the surface of workpiece, through the surface of workpiece abrasive impact and remove rust surface, it reaches a certain cleanness and roughness, again through the vacuum pump (or multi-stage vacuum generator) creates negative pressure, recycling waste materials and dust, sand and through the equipment of dust separation system will complete abrasive separation recycling, and continue to dust pollution into the dust collection barrel rust. In hand the switch control, equipment of sandblasting, back to the sand, sand dust separation, sand material circulation, dust filter to complete all action, working environment clean no pollution, work safety to "GB103328-10333 89" workshop air dust health standard. The waste materials, dust the automatic recovery, separation and recycling, the work site clean and free of dust pollution. Environmental protection equipment design, has greatly improved the labor intensity and work environment with blower, can automatically remove dust filter. Built-in water filter. May to the compressed air in secondary water-oil separation. Automatic feeding, will suck sand head into the waste materials, vacuum pump system will start in the automatic feeding. PLC programmable control (optional), material place alarm function (optional). With pressure regulating knobs, counter blowing button. Steady air control device and abrasive valve. Work 20-70 meters radius, surface treatment level of Sa2.5-3 grade. With safety waterproof power socket plug, convenient operation. Configuration control power plug sockets aviation easy operation. Unique beautiful dustproof control panel and the electric. Maintenance and overhaul special convenient. The car type structure, rain dustproof, convenient to move. The cabinet door plank fast door, more convenient to assemble and disassemble zoar connection. The switch control (hand electric control DC24V). One machine with three, with open, industrial suck sand device, environmental protection function of three equipment. Gush arenaceous host machine adopts special control circuit, working pressure in 0.2-0.8 range Kpa Kpa arbitrarily regulate, and can satisfy different requirements of sandblasting process workpiece. Use scope: derusting, except for paint, weld processing (including stainless steel weld and its surrounding the to black, welding slag processing) to deburr, flash, stainless steel, aluminum oxide skin, the elegant type inferior smooth surface treatment (to bear or endure corrupt the gender is good, can cover scratch), to concrete, stone carving surface dirt processing.

◆基本技木叁數 Main technical parameters

機氣型號查詢 Model	STR-B型無塵自動循環回收式噴砂機
的工作開關電源 Work power	380V 50HZ
的空氣負荷 Air pressure	5-7kg/cm2
耗氣量 Gas consumption	3m3/min
變頻電動機工作電壓 Motor power	4kw
本職工作利用率 Work efficiency	6-10m2
工作的轉彎半徑 Work radius	10m 可通過需求分析增長，實際管理咨詢客戶服務
作業風格 Work form	主動再循環環保再生資源回收Automatic cycle recovery
清洗登級 Clean level	Sa2-3
粗造度 Roughness	60μm左古
重量體積 Weight	260kg
自己的外觀厚度 Shape dimension	1380×830×1700mm
砂料品種 Sand material specifications	20-100#上（1.0mm-0.04mm）

◆符合區間 Applicable scope

1.環保節能必須高且無一切煙氣凈化系統的施工地點；

2.進行處理品級較高。

1. High environmental protection requirement and without any dust removal equipment occasion;

2. Higher processing level.

的使用比率：防銹、除油漆物料染焊接縫隙補救去毛邊、飛邊、氧化的皮不銹鋼裝飾管嗎、鋁板從表面的典雅型亞光凈化除理（耐污性較佳、可遮蓋住劃痕）去瀝青水泥土、石雕外表污圬等凈化除理。

（重要基本資料可參考選取A型或詳詢我我司）

Applicable scope: derusting, clean paint processing to weld burr, flash, stainless steel, aluminum oxide skin surface elegant type to bear or endure corrupt processing (matt better properties, can cover scratch) to concrete, stone carving surface dirt processing. (specific information can be A reference type or call our company)

◆ 車輛特別 Product features

此噴砂機戶外工作噴砂無粉塵污染，自動循環回收的環保型設備，我公司研發的C型無塵噴砂機屬于環保型無粉塵噴砂處理機，此機體積已下降，目的性那就是便利在戶外作業移動式便利，在很大程度上的下降了勞作剛度，然后加工處理吸收率在中國大陸相近型軟件熱鍵；收獲許多企業客戶的保持一致肯定，并早已收獲了廣的線上營銷和便用！（明確材質可考生A型或垂詢我品牌）

features: this machine introduces advanced foreign technology research and development of outdoor work gush arenaceous no dust pollution, automatic cycle recovery of environmental protection equipment. Our company’s C type clean sandblasting machine belong to the most advanced domestic environmental protection no dust gush arenaceous processor, the machine has to minimize, volume compression purpose is convenient outdoor construction convenient to move, greatly reduce the labor intensity, and processing efficiency in domestic products with type fastest; Our customers get a consensus, and has been widely promotion and use! (specific information can be A reference type or call our company)

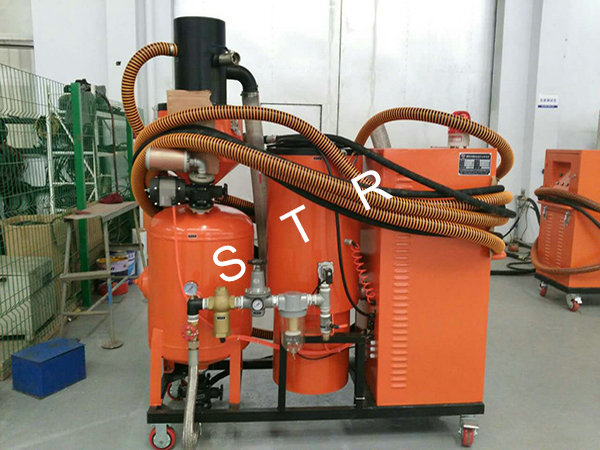

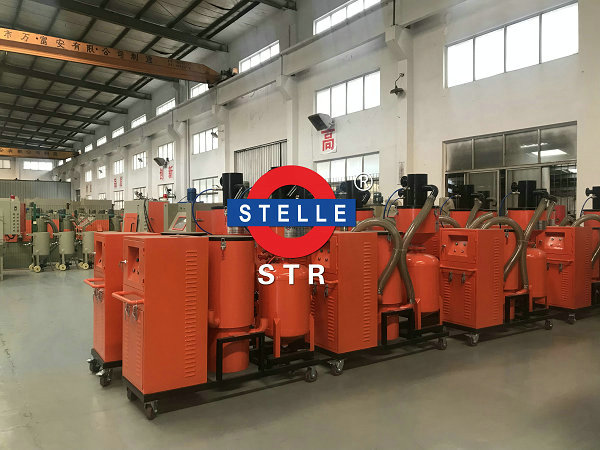

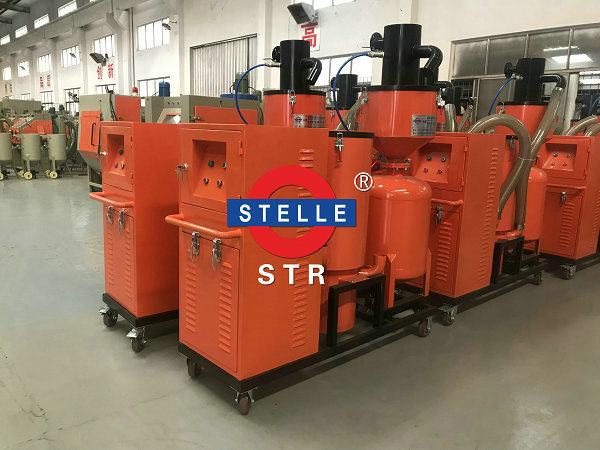

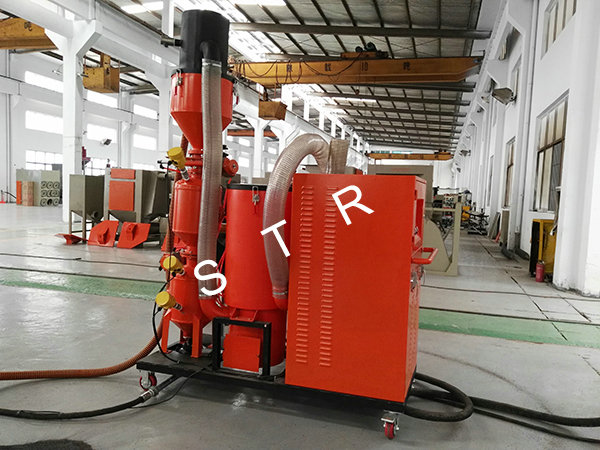

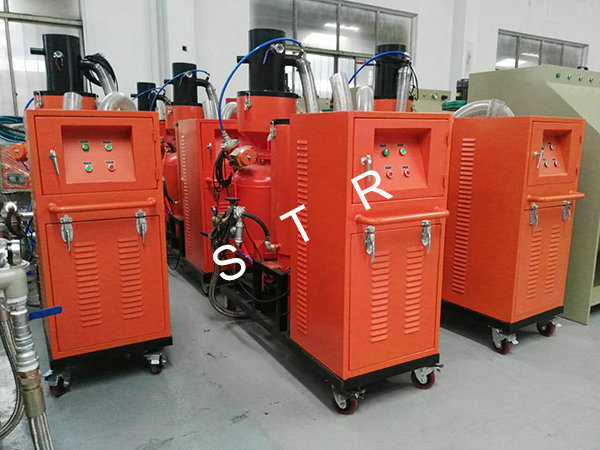

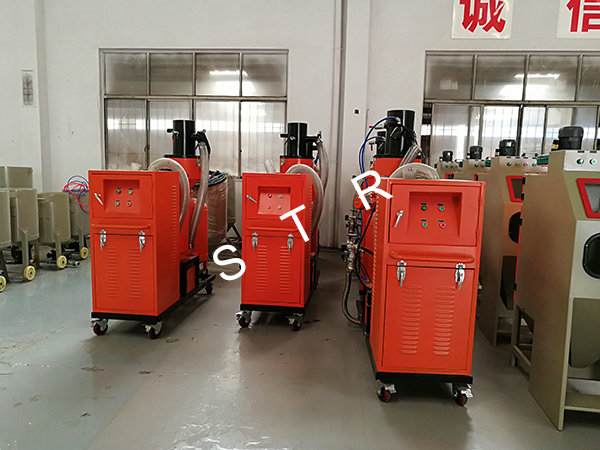

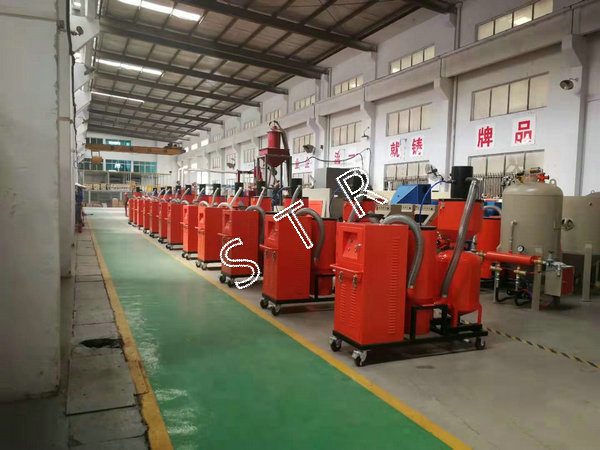

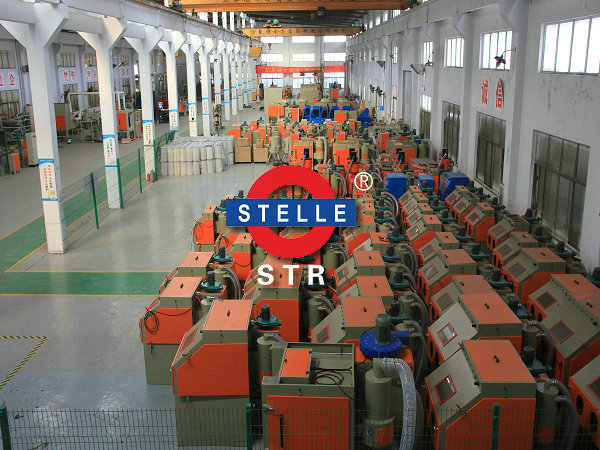

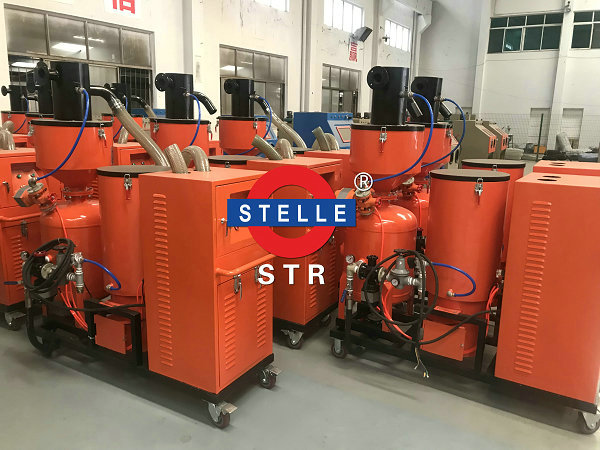

部份無塵自動循環環保型噴砂機案例:
